Stock Car Series

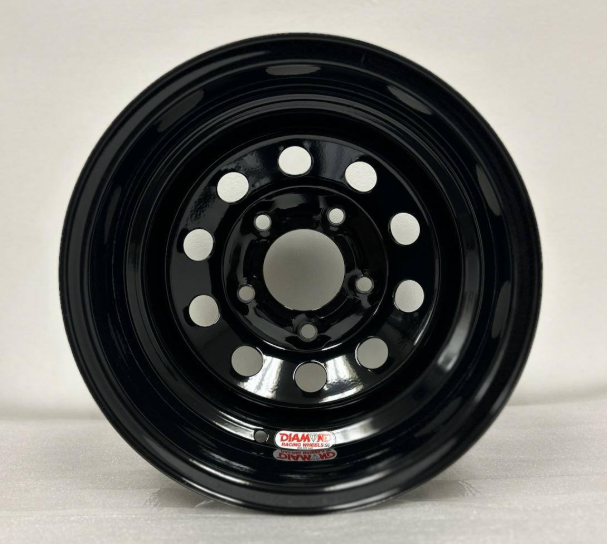

Built to survive punishment from the heavier cars in the street, hobby stock, figure eight and enduro type divisions, where bumping and grinding are part of the action. This wheel utilizes a heavier D.O.T. Rolled Shell (.135” thick) with safety beads. Available in both 4 bolt and 5 bolt patterns, these wheels have a Round Hole style center, giving them a modular look. Chrome Rim/Raw Center (you paint center) only available in 15×6, 15×7, 15×8, and 15×10.

Description

Silver powdercoat finish is the standard stocking color. Gloss Black and White powdercoat are also available.

Options Available:

(07) Safety Beads - Deep
(08) Beadlock Installed

Standard MINI Bolt Patterns

4×100, 4×4 1/4, 4×4 1/2

MINI Optional Bolt Patterns

4×98, 4×100, 4×110, 4×120,
4×130, 4×3 3/4, 4×4,
4×4 1/2, 5×100, 5×4 1/2,
5×4 3/4, 5×5, 5-on,
6×5 1/2, 15×9 3/4 Weld

* Denotes available in chrome

Stud Hole Size

9/16" for 1/2" or smaller studs (60° taper lug nuts.)
(4×3 3/4) 7/8" for 3/8" studs (60° taper lug nuts.)

Note: For larger backspace requirements than listed - Use Front Wheel Drive (FWD) Style center (if available) - adds 2 to 3 lbs to wheel weight

Note: These wheels are Lug Center and can't be spin balanced off the center pilot hole. To balance, spin off the bolt circle

13" Spun Shell Sizes

Size	Weight	Backspace
13×5 1/2"	10 1/2 lb	1" to 3"
13×6"	11 lb	1" to 3 1/2"
13×7"	13 lb	1" to 4 1/2"
13×8"	14 lb	1" to 5"
13×9"	15 lb	1" to 6"
13×10"	16 lb	1" to 7"
13×11"	17 lb	1" to 8"
13×12"	17 lb	1" to 9"

13" Rolled Shell Sizes

Size	Weight	Backspace
13×5 1/2"	15 lb	1" to 3"
13×7"	17 1/2 lb	1" to 4 1/2"

Description

Gloss Black powdercoat finish is the standard stocking color. Chrome looking Silver powdercoat finish is also available. Quality chrome plated finish is available in some sizes.

Options Available:

(07) Safety Beads -Deep
(08) Beadlock Kit Installed
(30) Duble Backed Center

14″ Stock Car Bolt Patternss

•4×100, •4×4, •4×4.1/4, •4×4.1/2, •5×100, •5×4.1/2, •5×4.3/4

•Denotes -available in FWD style

Stud Hole Size:

4 bolt: 9/16″ for 1/2″, 12mm or 7/16″ studs (60 degree taper lug nuts)
5 bolt: (5×4.1/2, 5×4.3/4, 5×5) 11/16″ for 5/8″ studs (45 degree taper racing lug nuts.)
All other 5 bolt Patterns have 9/16″ for 1/2″ studs (60 degree taper lug nuts.)
6 & 8 bolt : 5/8″ for 9/16″ studs (60 degree taper lug nuts.)

Note : For larger backspace requirements than listed –

Use Front Wheel Drive(FWD) Style center (if available) -adds 2 to 3 lbs to wheel weight

Stud Hole Size

4 bolt: 9/16″ for 1/2″, 12mm or 7/16″ studs (60 degree taper lug nuts)
5 bolt: (5×4.1/2, 5×4.3/4 ,5×5) 11/16″ for 5/8″ studs (45 degree taper racing lug nuts.)
All other 5 bolt: Patterns have 9/16″ for 1/2″ studs (60 degree taper lug nuts.)
6 & 8 bolt: 5/8″ for 9/16″ studs (60 degree taper lug nuts.)

14″ STOCK CAR SIZES

Size	Weight	Backspace
14×6″	20 lb	1.1/2 to 4.1/2″
14×8″	24 lb	1.1/2 to 5.1/2″

15″ STOCK CAR SIZES

Size	Weight	Backspace
15×5″	21 lb	1.1/2 to 2.1/2″
15×6″	22 lb	1.1/2 to 3.1/2″
15×7″	23 lb	1.1/2 to 4.1/2″
15×8″	25 lb	1.1/2 to 5″
15×10″	27 lb	1.1/2 to 7″

15″ Stock Car Bolt Patterns

*5×4.1/2, *5×4.3/4 *5×5,
15“ Optional Car Bolt Patterns
4×100, 4×4, 4×4.3/4, *4×4.1/2, 5×100, *6-pin, 6×5.1/2, 8×6.1/2, 18×10 Sander and Wide-5 *Denotes -available in Chrome
