Racing Wheels
Trucker – Series
Trucker series 15″ Pro/Standard wheels are strong and affordable. These wheels are ideal for both on and off-road applications. The .135″ thick DOT rolled rim shell includes safety beads to keep the tire “locked on the wheel.” A large 13.3″ ID dropwell provides for greater brake clearance. A high strength low alloy steel center is “draw-formed” with “coined “vent window that strengthen the spoke areas to reduce flex and deflection. Ten “D” vent windows allow for maximum brake cooling and gives this wheel a NASCAR® style look.
For The Trucker Series Please please Contact us at 800-937-4407 for a quote.
Description

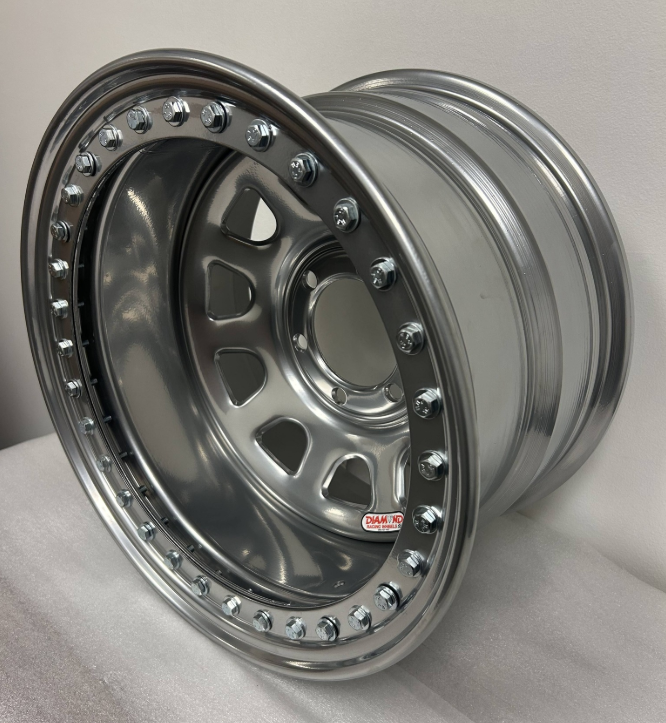

16″, 16.5″ & 17” diameter Trucker series wheels utilize a heavy duty .156″ thick DOT rolled rim shell.
The center style is round hole giving this wheel a modular look. Great for trailer use also.
Available in (chrome looking) Silver powdercoat and also a Gloss Black powdercoat finish.
Quality Chrome Plated finish is only available in the 8″ shell and popular bolt patterns.
Options Available:
(08) Beadlock Kit Installed
(30) Double Backed Center
Standard Bolt Patterns
5×4.1/2, 5×4.3/4, 5×5
Optional Bolt Patterns
5×135, 5×5.1/2, 6×5.1/2
8×6.1/2, 8×170
Stud hole sizes:
5 bolt: 11/16″ for 5/8″ studs (45° taper racing lug nuts)
All other 5 bolt patterns (60° taper lug nuts)
6 & 8 bolt: 5/8″ for 9/16″ studs (60° taper lug nuts)
NOTE: These wheels are Lug Center and can’t be spin balanced off the center pilot hole.
To balance, spin off the bolt circle.
15″ PRO/STD SIZES
| Size | |
|---|---|
| 15×7 | 15×8 |
| 15×10 | 15×12 |
| 15×14 | |
16″ 16.5″ & 17″ TRUCKER
| Size | ||
|---|---|---|
| 16×6 | 16.5×6.75 | 17×7 |
| 16×7 | 16.5×8.25 | 17×8 |
| 16×8 | 16.5×9.75 | 17×9 |
| 16×9 | 16.5×12 | 17×10 |
| 16×10 | 17×5.5 | 17×12 |
| 16×12 | 17×14 | |
| 16×14 | ||
